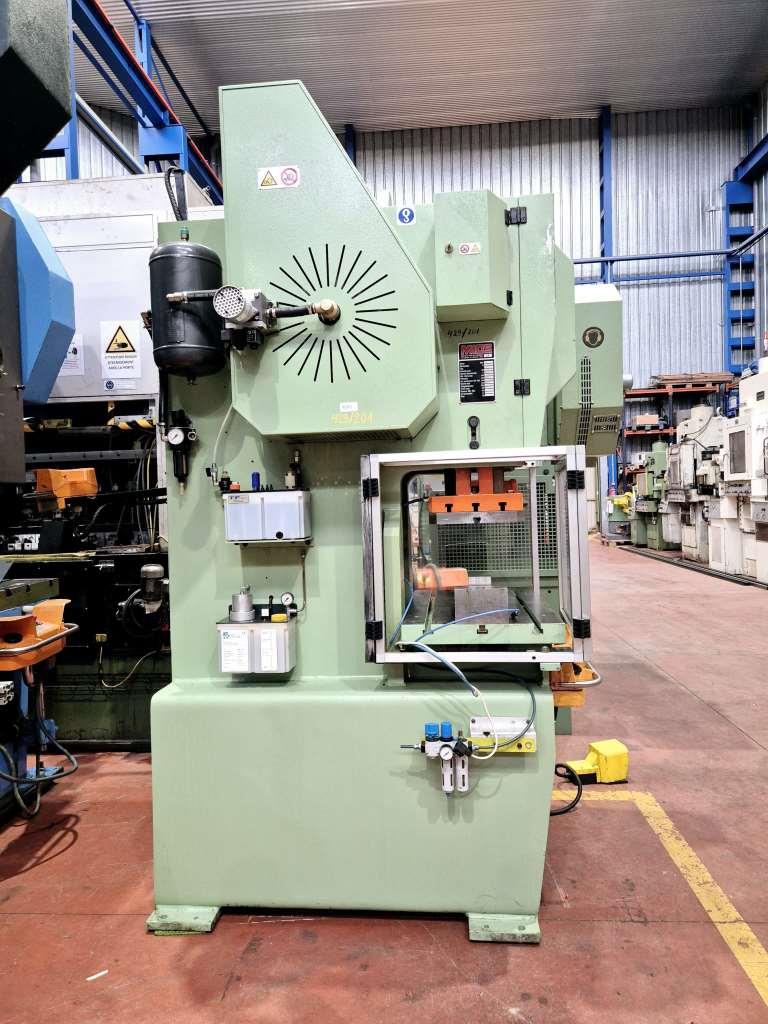

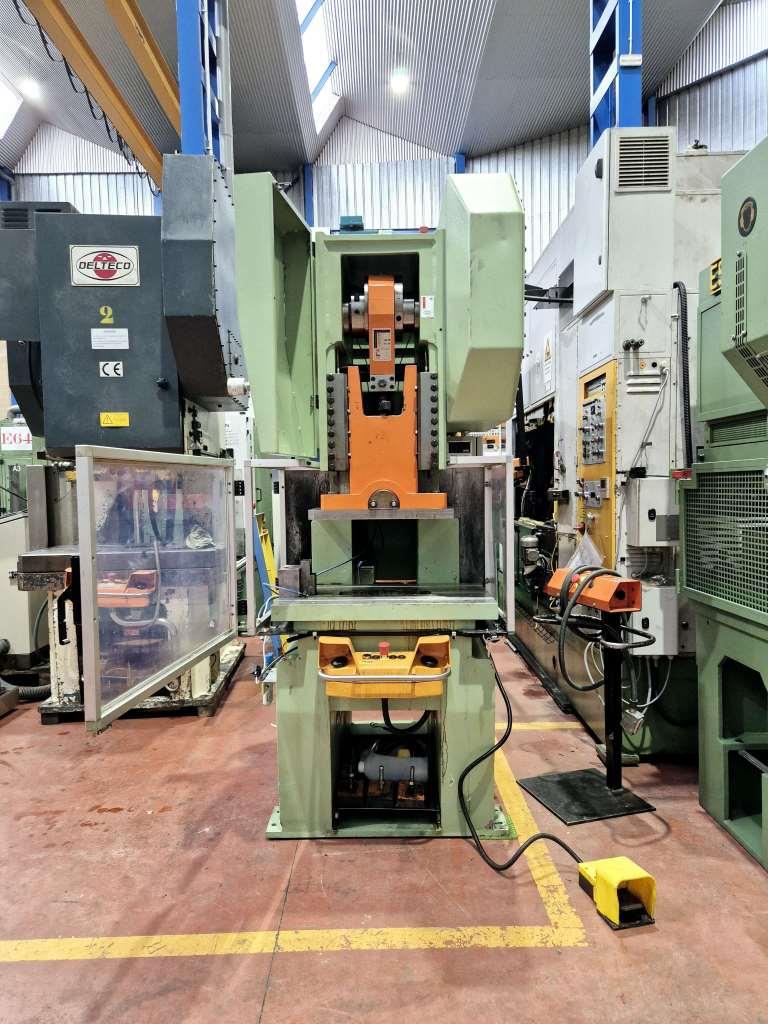

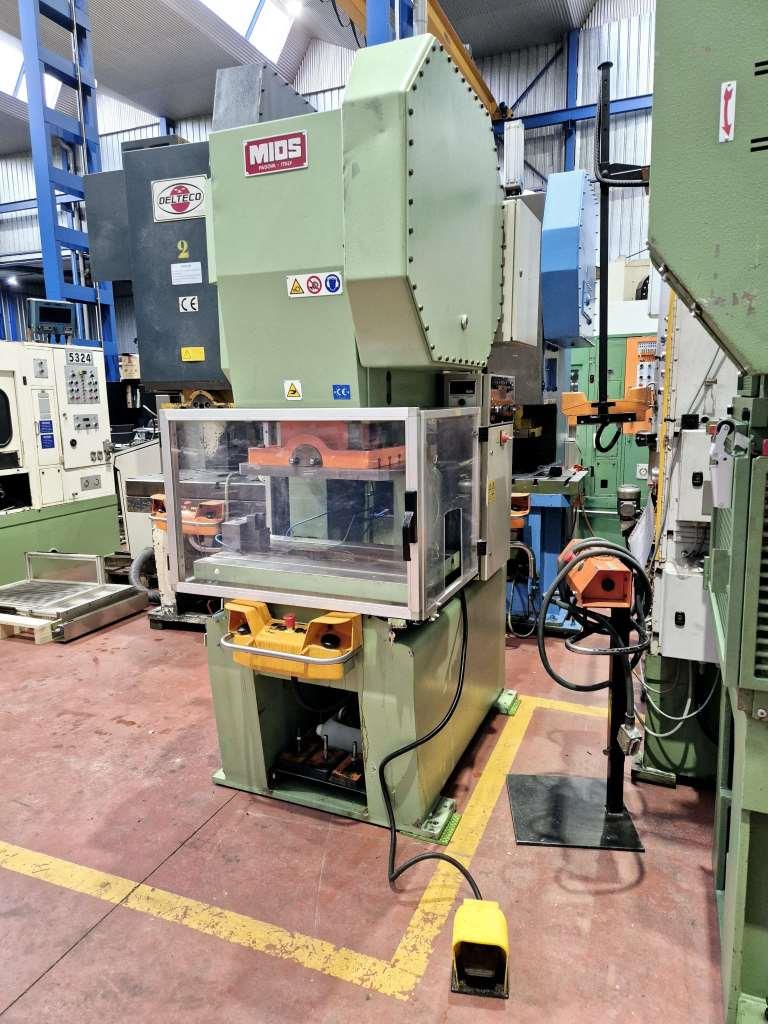

Prensa MIOS T55TR, prensa mecánica MIOS 55to

Recibir más información

8 + 5 =

Categories Power press (C-Frame)

Object 55215

Brand MIOS

Model T50 TR

YoM 2002

Press Design
drive system:  eccentric / crank
Press forces
total force (nominal):   55 to
Press Table
table surface (left-right):   750 mm
table surface (front-back):   450 mm

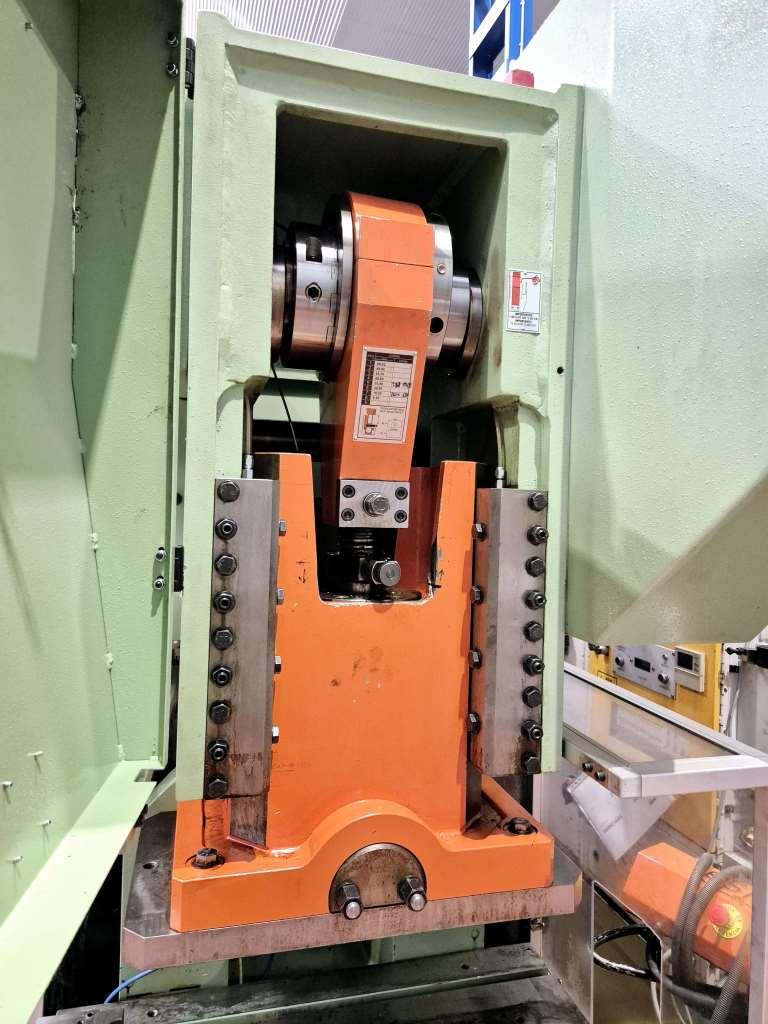

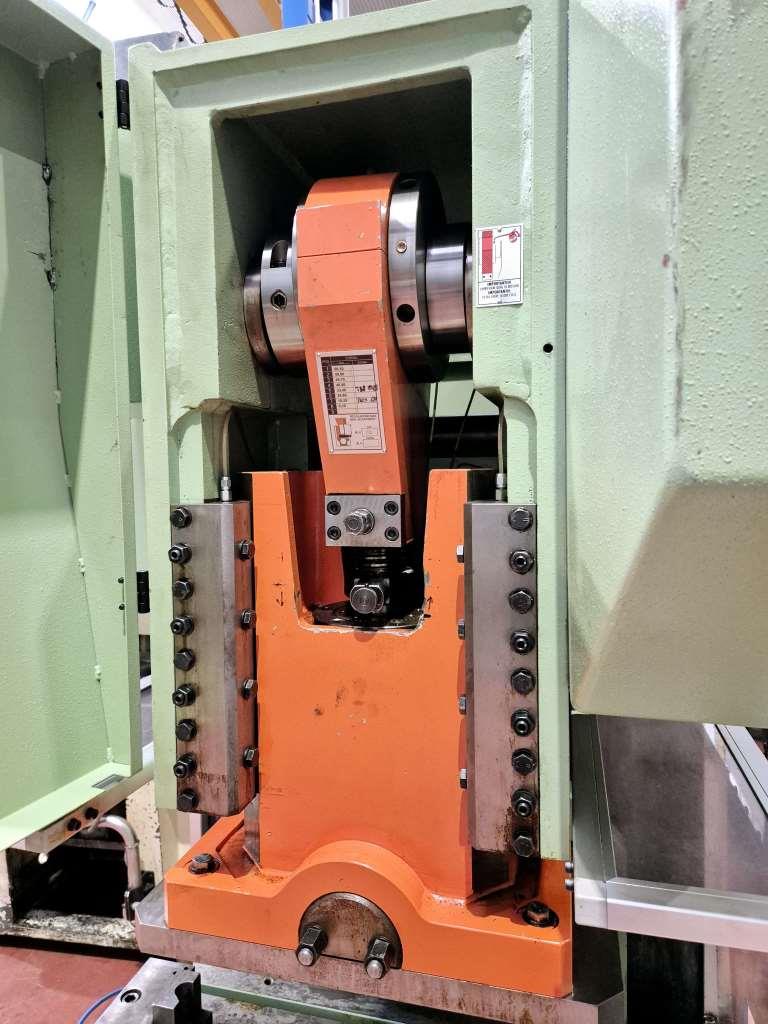

Slide
table surface (left-right):   400 mm
table surface (front-back):   300 mm
spigot hole diameter:   45 mm
stroke:   50 mm
stroke rate (max.):   100 /min
slide (mechan. Press)
slide adjustment:   70 mm
stroke min.:   6 mm
stroke max.:   50 mm
stroke rate (min.):   50 /min
stroke rate (max.):   100 /min
Tool Assembly Dimensions
shut height (stroke down, adjustment up), BDC:   310 mm

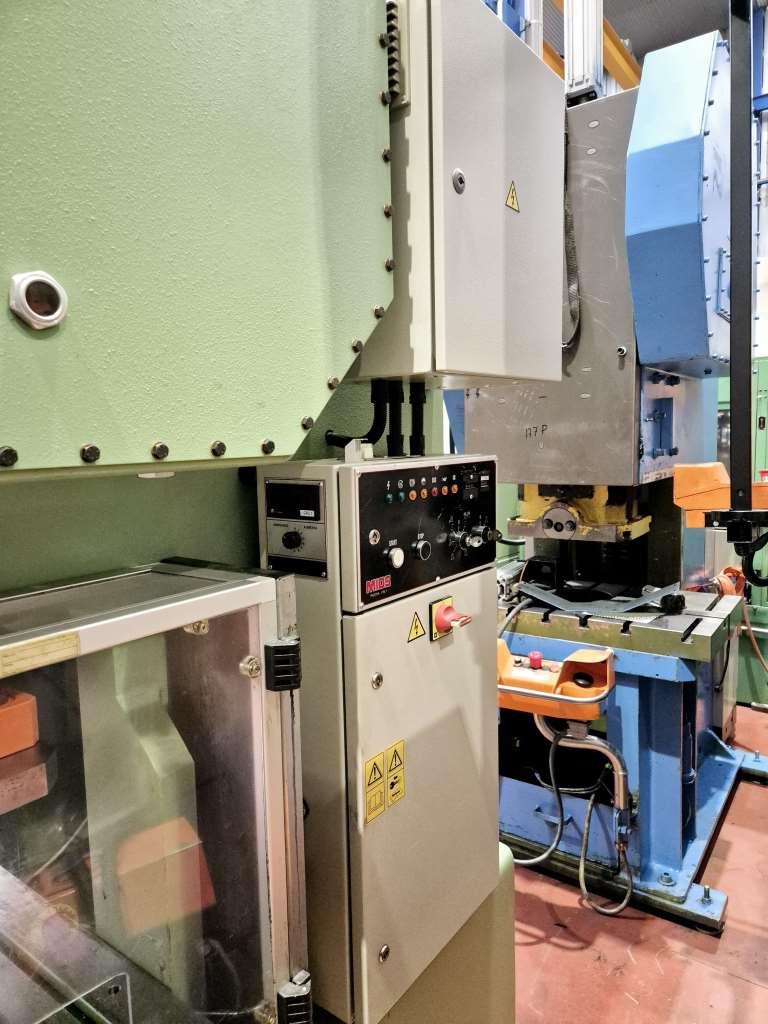

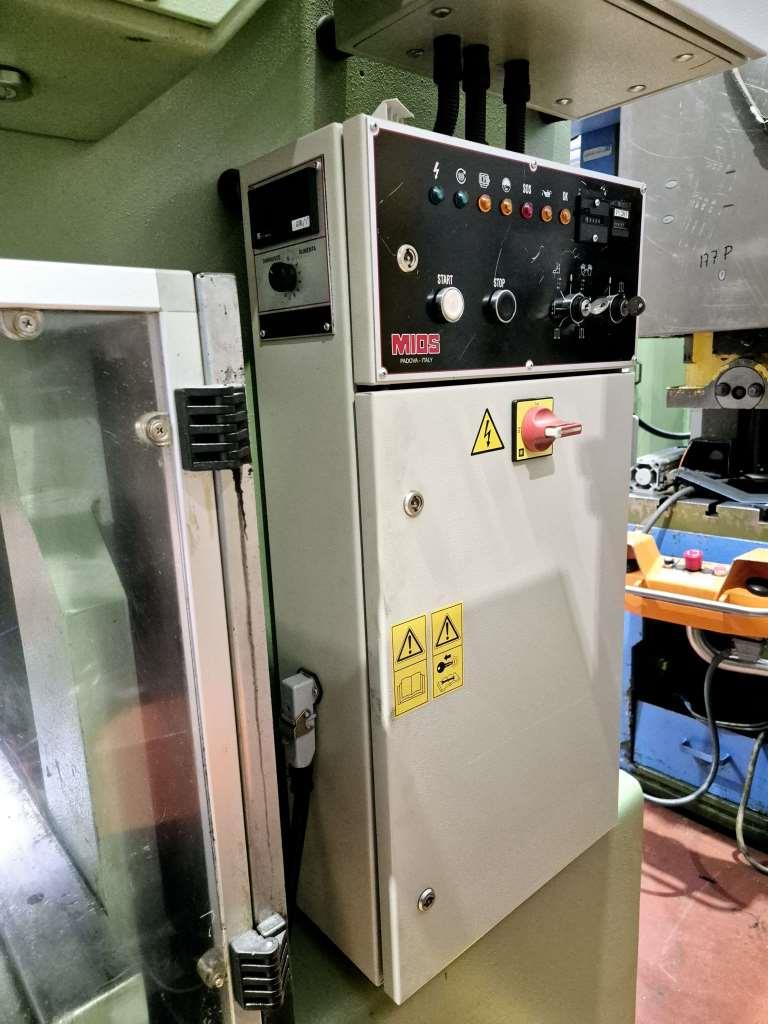

Electrical specifications
mains voltage:   400 V
mains frequency:   50 Hz
Dimensions / weights
space requirements -left/right-:   1200 mm
space requirements -front/back-:   1500 mm
total height:   2500 mm
total weight approx.:   3850 kg
Attachments (presses)
strip feeder:  optional
feeder type:  grip feeder
safety guard / safety door:  yes
2-hand engagement:  yes
foot engagement:  optional
European CE standards:  yes
